MQTT Project
Abstract:
In the “Internet of Things” (IoT) vision the physical world blends with a virtual one, while machine-to-machine interaction improves our daily life. Clearly, how these virtual objects are exposed to us is critical, so that their user interface must be designed to support the easiness of usage that is driven by the users' needs, which is different from what machines require. These two requirements must be solved, and an integrated solution should emerge, if we want to bring the IoT to the 50 billion network that is predicted to become in the next years, one of the protocols it used in IoT world is MQTT is an open protocol developed and released by IBM. To ensure the reliability of message transmission, MQTT supports three levels of QoS. In this paper, we analyze MQTT message transmission process, which consists of real, wired/wireless publishes client, broker server and Subscribe client. By transmitting messages through three levels of QoS with various sizes of payloads, we have captured packets to analyze end-to-end delays and message loss
Building upon a complex network connecting billions of devices and humans into a multi-technology, multi-protocol, and multi-platform infrastructure. The Internet-of-Things (IoT) main vision is to create an intelligent world where the physical, the digital and the virtual are converging to create smart environments that provide more intelligence to the energy, health, transport, cities, industry, buildings and many other areas of our daily life. The expectation is that of interconnecting millions of islands of smart networks enabling access to the information not only “anytime” and “anywhere” but also using “anything” and “anyone” ideally through any “path”, “network” and “any service”. This will be achieved by having the objects that we manipulate daily to be outfitted with sensing, identification, and positioning devices and endowed with an IP address to become smart objects. Capable of communicating with not only other smart objects but also with humans with the expectation of reaching areas that we could never reach without the advances made in the sensing, identification and positioning technologies. Internet of Things represents a general concept for the ability of network devices to sense and collect data from the world around us, and then share that data across the Internet where it can be processed and utilized for various interesting purposes. In this research, we are going to focus on MQTT protocol to configure the MQTT with the mote device to be able to see the result of the wither degree. Talks about the Internet of Things nowadays. Increasingly affordable microcontrollers like Arduino and Raspberry Pi are enabling cheap devices that measure sensor data and send it over the internet. The goal of this post is to introduce the lightweight protocol MQTT and its capabilities to send data between devices.
MQTT stands for MQ Telemetry Transport. It is published /subscribe, extremely simple and lightweight messaging protocol, designed for constrained devices and low-bandwidth, high-latency or unreliable networks.
Also, MQTT used for getting the information from the sensor to the device “machine-to-machine” (M2M) or “Internet of Things” world of connected devices, and for mobile applications where bandwidth and battery power are at a premium. In addition, MQTT sends the message to the cloud to until the user updates his programs.
MQTT was invented by Dr.Andy Stanford-Clark of IBM, and Arlen Nipper of Arcom (now Eurotech), in 1999. As of March 2013, MQTT is in the process of undergoing standardization at OASIS. The protocol specification has been openly published with a royalty-free license for many years, and companies such as Eurotech (formerly known as Arcom) have implemented the protocol in their products.
The goal of MQTT protocol is to help the user and developer to transfer the data around the world and understand the best way of this technology to collect the information to resources for the user be able to see the result of the information.
Cloud MQTT:

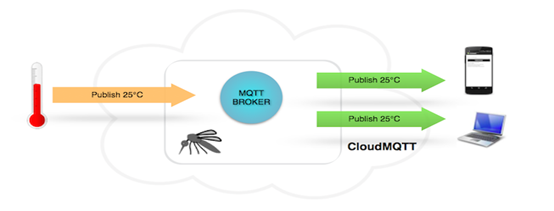

CloudMQTT has managed Mosquitto servers in the cloud. Mosquito implements the MQ Telemetry Transport protocol, MQTT, which provides lightweight methods of carrying out messaging using a publish/subscribe message queueing model.
MQTT is a protocol design to work from machine to Machen; also, it works in “IOT” it one of a device connected to mobile or computer…etc. MQTT protocol provides asynchronous communications to send and receive the messages do not need to interact with the message queue at the same time. Messages placed onto the queue are stored until the recipient retrieves them or until the messages times out. MQTT and Mosquito are for good use by bandwidth sensitive applications. CloudMQTT let you focus on application instead of spending time on scaling the broker.

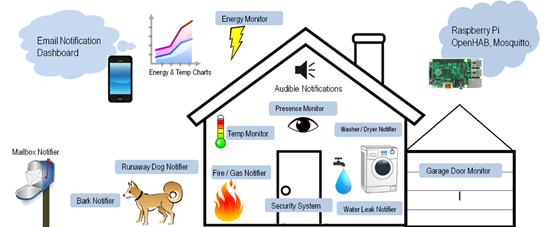

In personal, Home:
Motte for garage car: using the moot to open the garage when it inhales the car exhaust.
Moot for refrigerator: the moot will send the receiver notification when the refrigerator was open.
Moot for the door: the moot will send the notification to the receiver when the door was open.
This some example sensor using MQTT to send and receive the information to your device, and we can expect that its rapid rate of adoption will only increase in the future.
When the Clint subscribe to programs or website then they can receive the data from the sensor using MQTT protocol, but it has some role:

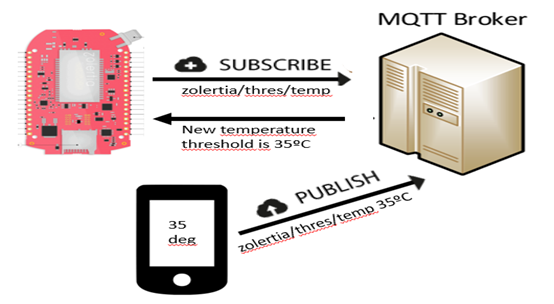

Clients do not have addresses like in email systems, and messages are not sent to clients.

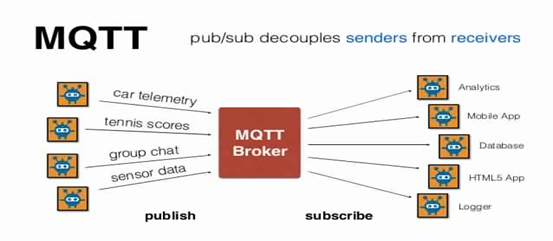

Instead, messages are published to the broker on a topic.
The job of an MQTT broker is to filter messages based on topic and then distribute them to subscribers.
A client can receive these messages by subscribing to that topic on the same broker in this model; there is no direct connection between a publisher and subscriber.
The challenges of using MQTT for the Internet of Things:
Because MQTT was not designed with security in mind, the protocol has traditionally been used in secure, back-end networks for application-specific purposes. MQTT's topic structure can easily form a huge tree and there is no clear way, how to divide a tree into smaller logical domains that can be federated. This makes it difficult to create a globally scalable MQTT network, because as the size of the topic tree grows, complexity increases.
Another negative aspect of MQTT is its lack of interoperability. Because message payloads are binary, with no information as to how they are encoded, problems can arise -- especially in open architectures where different applications from different manufacturers are supposed to work seamlessly with each other.
As touched upon previously, MQTT has minimal authentication features built into the protocol. Username and passwords are sent in clear text and any form of secure use of MQTT must employ SSL/TLS, which, unfortunately, is not a lightweight protocol. Authenticating clients with client-side certificates is not a simple process and there is no way in MQTT, except by proprietary out-of-band means, to control who owns a topic and who can publish information on it. This makes it very easy to inject harmful messages, either willfully or by mistake, into the network. Furthermore, there is no way for the message receiver to know who sent the original message unless that information is contained in the actual message. Security features that have to be implemented on top of MQTT in a proprietary fashion increase the code footprint and make implementations more difficult.
The benefit of MQTT:
1-Security
Even though MQTT messaging uses an unsecured TCP, we can be able to encrypt data with TLS/SSL Internet security to make it robust, when we send and receive the data we have encryption based on the resourcefulness of the system and security mandate.
2-Central Broker
We may be getting billions of devices on the Internet over the next 5 to 10 years. Broker, which can act as a server, can effectively reduce the number of packets that fall into the internet and the amount of processing the individual memory needed for the clients. We should be able to build a grid of highly interoperable brokers across different vendors.
3-Quality of Service

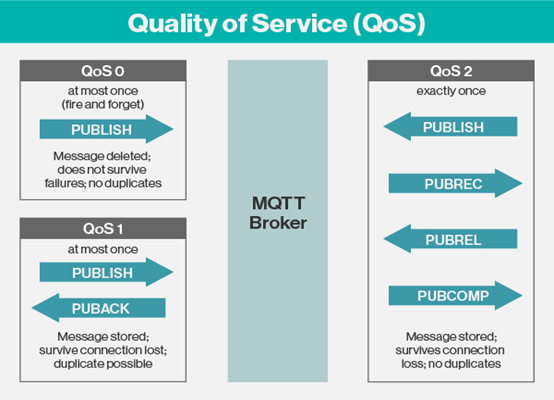

MQTT defines three QoS, which can cater to base on the importance of each message and the repetitiveness of the messages in the environment.
At Most Once – Client configured with QoS level 0 will publish messages only once. Just to send the message to the receiver.
At least Once – Client configured with QoS level 1 will publish messages more than once. It will save the message until the receiver gets the message.
Exactly Once – Client configured with QoS level 2 ensures publishing the message exactly once. This is the most secure level of publishing message.
4-Flexible Subscription pattern:
The subscriber can to all topic for example if we have a program like 356 scores and the client subscriber for all Football League than it can see all the result at the same time.

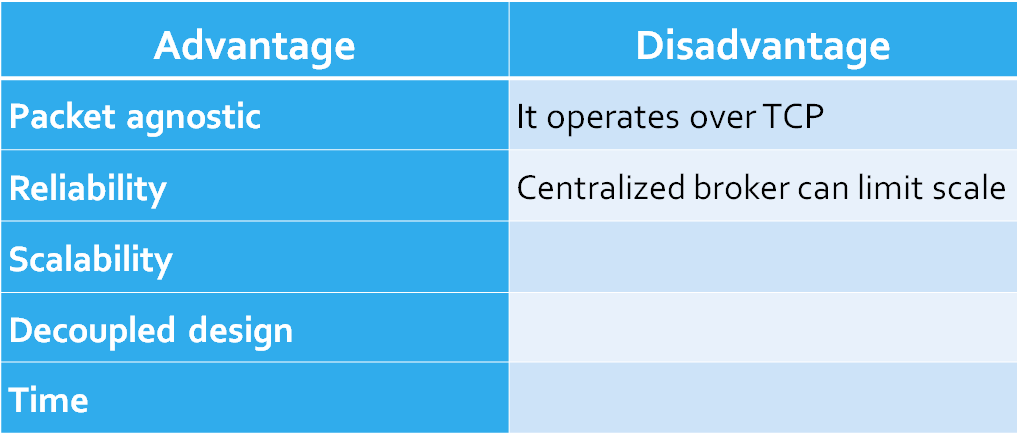

The Advantage of MQTT:
Packet agnostic: A kind of information can be transported in the payload carried by the packet. The data could be text or binary. It does not matter as long as the receiving party knows how to interpret it.
Reliability: There is some Quality of Service (QoS) options that can be used to guarantee delivery.
Scalability: The publishes/subscribe model scales well in a power-efficient way.
Decoupled design: There are several elements to the design that decouple the device and the subscribing server, which result in a more robust communication strategy.
Time: A device can publish its data regardless of the state of the subscribing server.
The Disadvantage of MQTT:
It operates over TCP: TCP was designed for devices that had more memory and processing power than many of the lightweight, power-constrained IoT devices to have available to them. TCP requires more handshaking to set up communication links before any messages can be exchanged.
A centralized broker can limit scale: The broker can affect scalability, as there is additional overhead for each device connected to it. The network can only grow as large as the local broker hub can support it
Practical:
Working with Contiki and MQTT-SN
Sorry if you already know all of this or if I'm prolix/long-winded but I think that's important to make things clear before to show some code, if you didn't understand something, just ask about, I'll appreciate to help you.
To start this integration between Contiki and MQTT-SN, I will separate into two parts:
Simulation with Z1 nodes
Real nodes talking each other
It's important to make in this mode because if you have problems with the first part, it's easier to fix and following
Part 1 - Simulation on Cooja
For MQTT-SN broker, let us use rsmb, simple and easy to use on Linux. This broker made in C language is lightweight to run in any embedded Linux board (SBC). Do not worry to download and install this, I had created a repository with RSMB integrated for this post.
MQTT-SN and Contiki repository

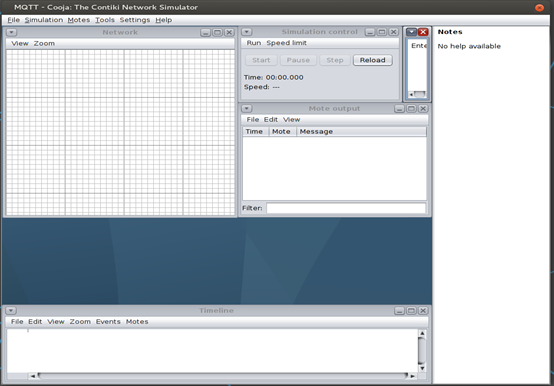

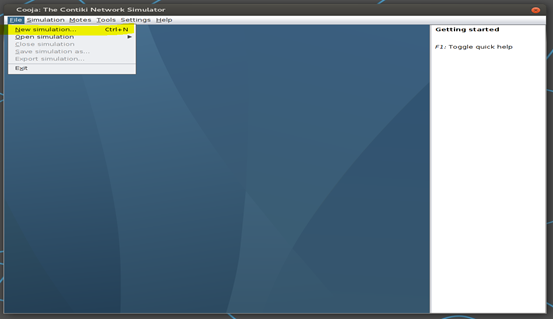

Copy all the content to your local directory, make it and start a new simulation on Cooja:

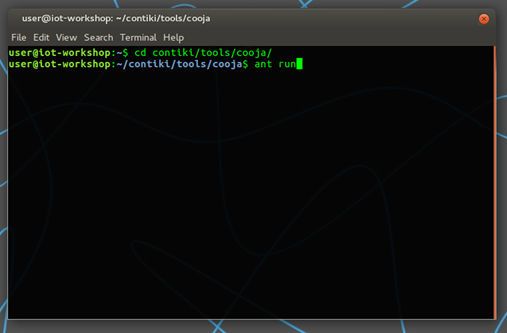

Cd Contiki/tools/cooja

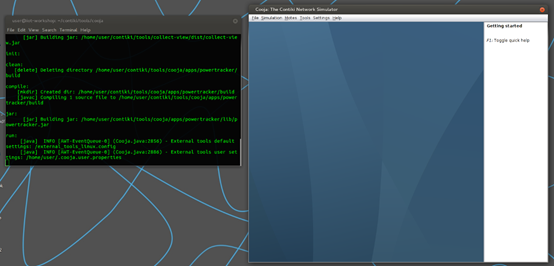

Ant run
We will set up an IoT network with one border router and one client connected to it. The client will publish information to an MQTT server. The border router will transfer the data via the serial port by using the tuneslip6.

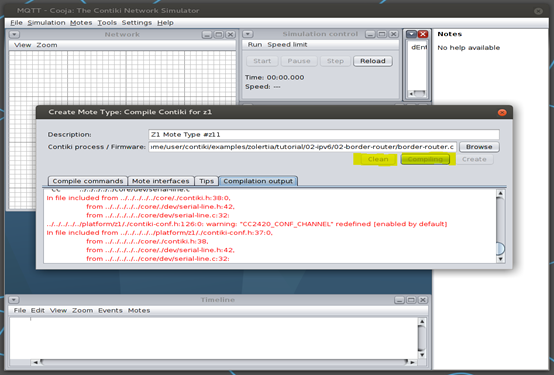

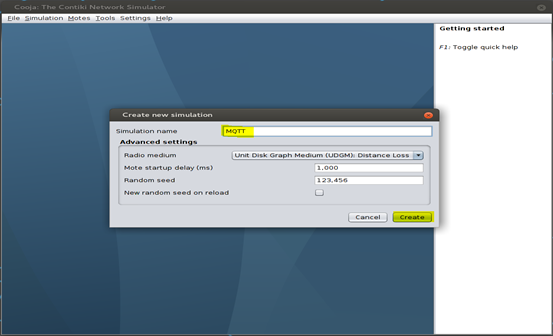

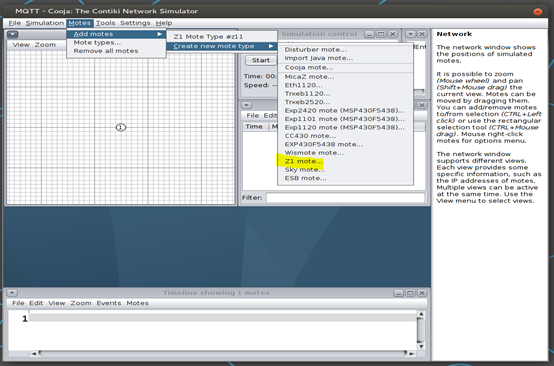

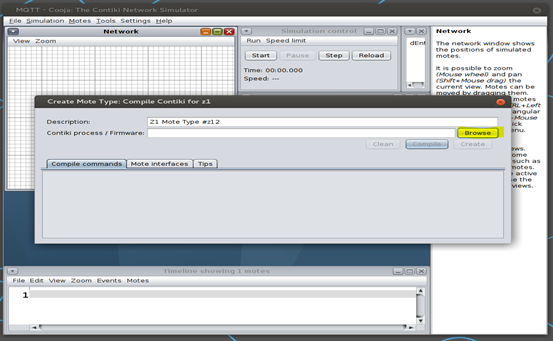

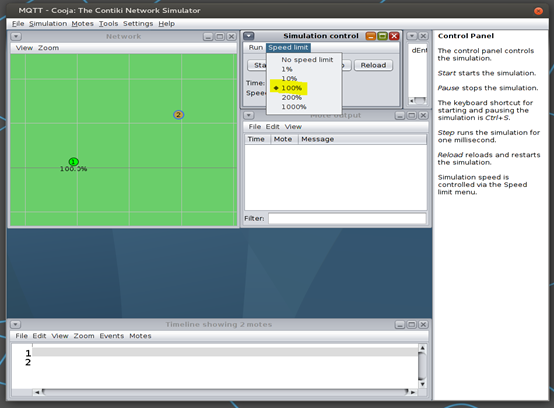

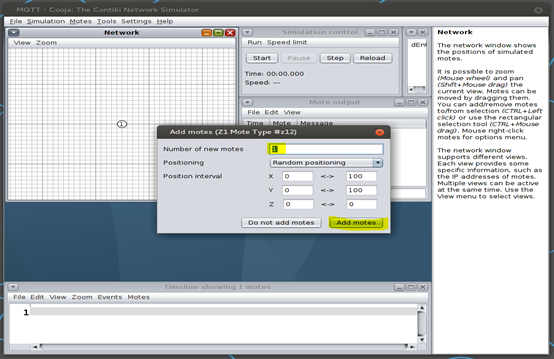

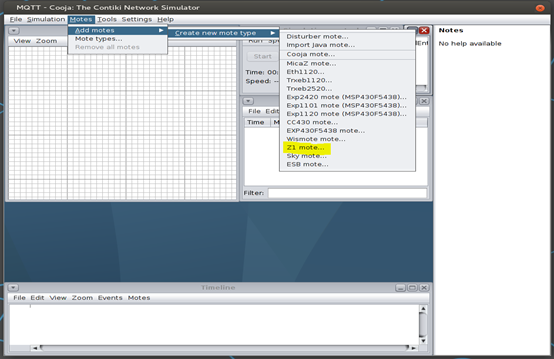

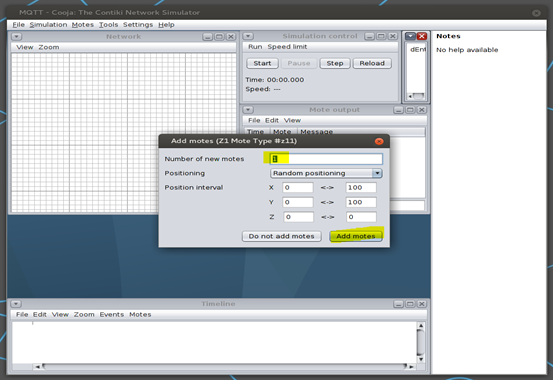

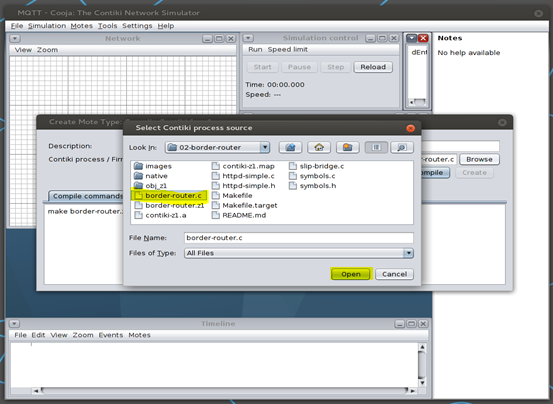

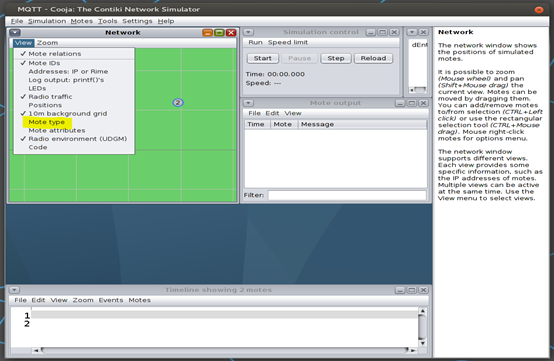

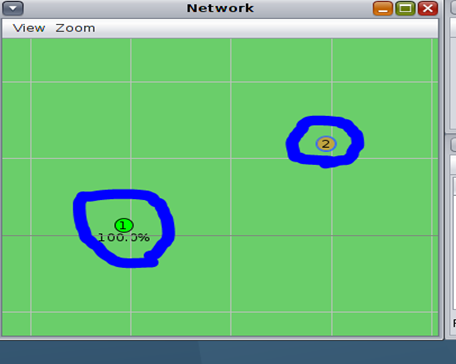

Create a new simulation with two motes:
1. One (1) mote will be boarder-router

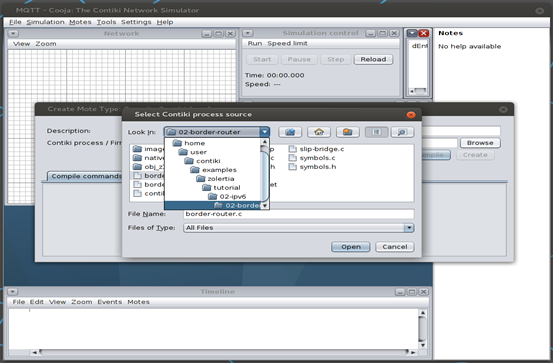

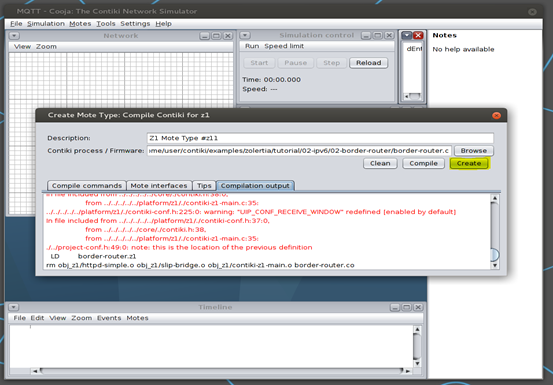

contiki/examples/zolertia/tutorial/02-ipv6/02-border-router/border-router.c
One (1) mote as an MQTT client:

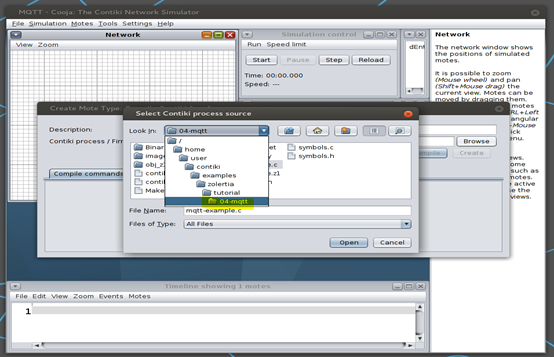

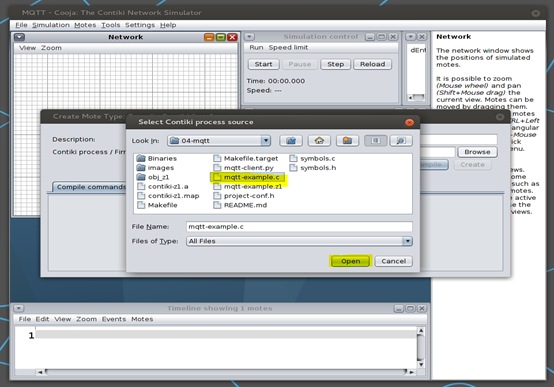

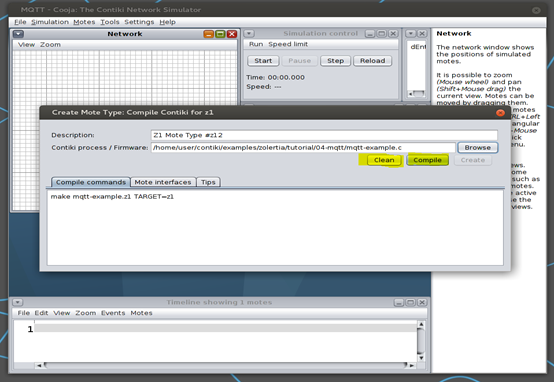

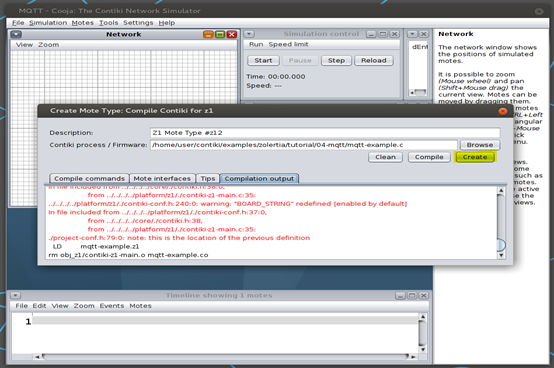

contiki/examples/zolertia/tutorial/04-mqtt/mqtt-example.c.
Compile tuneslip6 (if not already compiled)
cd ~/contiki/tools
make tunslip6

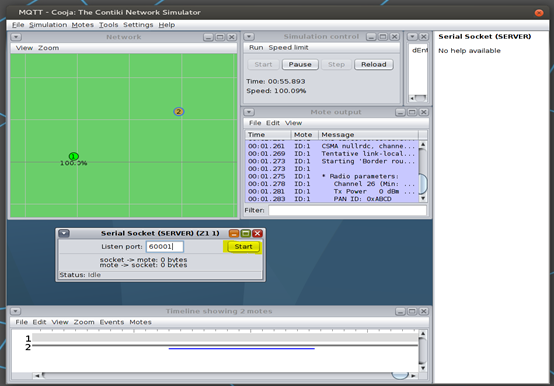

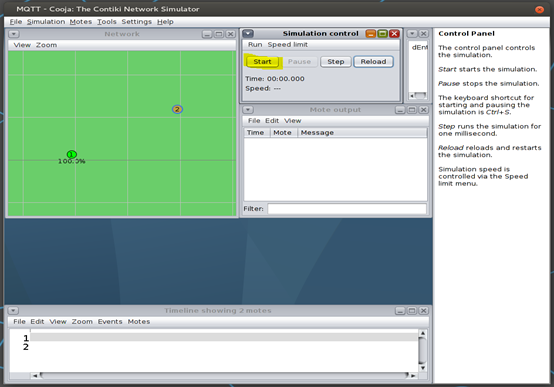

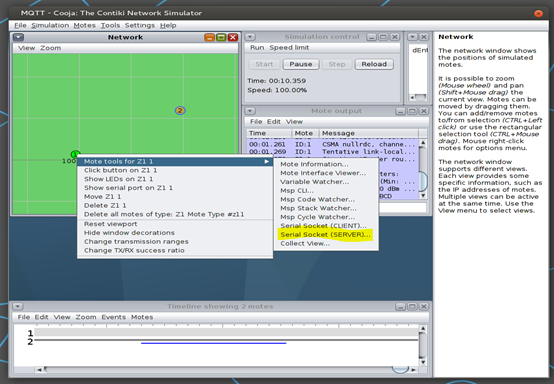

open a terminal and run tuneslip:

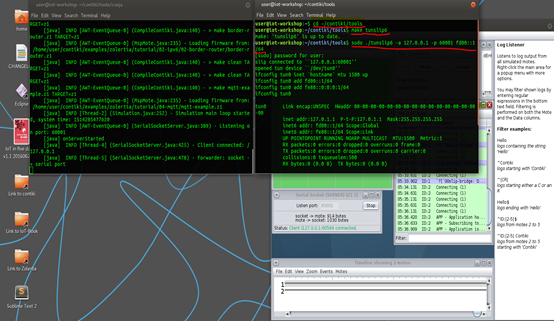

sudo ./tunslip6 -a 127.0.0.1 -p 60001 fd00::1/64
If you don't know how to create the simulation, maybe you didn't read the warning at the beginning of this post [go to read and after come back =)]. As in the previous posts, start the tunslip6 to create the tunneled adapter for the communication with our broker
To test the connection to a public MQTT server open a terminal, and subscribe to a channel:
mosquitto_sub -t 'ttc/zolertia'
the above command will connect to the mosquito broker running into the localhost
try to connect to a public MQTT broker
mosquitto_sub -h test.mosquitto.org -t 'ttc/zolertia'
Open ANOTHER terminal and publish to the same channel:
mosquitto_pub -t 'ttc/zolertia' -m 'Hello TTC'

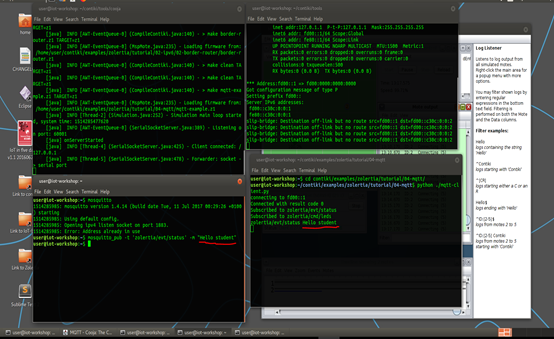

You should see your message into the first terminal (where you subscribed to the MQTT broker)
Try to publish to a public MQTT broker
mosquitto_pub -h test.mosquitto.org -t 'ttc/zolertia' -m 'Hello TTC'
Conclusion:
Some also use the term industrial Internet interchangeably with IoT. This refers primarily to commercial applications of IoT technology in the world of manufacturing. The Internet of Things is not limited to industrial applications. In our research, we show you general information about the Internet of Things (IoT). In this Reacher I'm writing a series of posts about MQTT because studying this for a year ago for my term paper, makes me know that the possibilities are almost infinite and with IoT growing up, 6LoWPAN will represent a piece of these devices on this new tech revolution. If you already had worked with IoT protocols, probably you heard about MQTT. This protocol is so widespread in IoT that even big players like Philips, General Electric, and Facebook are using for their productsTop of Form but we focus on MQTT, protocol using Linux operating system using mote device to the connection between each other using Linux operating system open the Simulation on Cooja to create 2 Z1 nodes. one as a server and one as a Clint to be able to see the message from the sensor and the Clint.
References:
https://blog.aignacio.com/2017/07/03/6lowpan-mqtt-sn-and-contiki-os-part-2/
https://blog.aignacio.com/2017/06/25/6lowpan-mqtt-and-contiki-os/
https://github.com/Zolertia/Resources/wiki/MQTT-client
https://hackaday.io/project/12979-home-automation-thermostat-with-esp8266-openhab
https://www.linux.com/news/mqtt-building-open-internet-things
https://github.com/adafruit/Adafruit_MQTT_Library/blob/master/examples/mqtt_esp8266/mqtt_esp8266.ino
https://www.lifewire.com/introduction-to-the-internet-of-things-817766
https://www.safaribooksonline.com/library/view/analytics-for-the/9781787120730/db65d957-cf17-459c-a203-4b8234a14261.xhtml
Lee, S., Kim, H., Hong, D. K., & Ju, H. (2013, January). Correlation analysis of MQTT loss and delay according to QoS level. In Information Networking (ICOIN), 2013 International Conference on (pp. 714-717). IEEE.
Singh, M., Rajan, M. A., Shivraj, V. L., & Balamuralidhar, P. (2015, April). Secure MQTT for the internet of things (IoT). In Communication Systems and Network Technologies (CSNT), 2015 Fifth International Conference on (pp. 746-751). IEEE.
